YR1035+ позволяет с высокой точностью провести измерение внутреннего сопротивления и напряжения аккумуляторов.

С помощью YR1035+ можно быстро и с высокой точностью проводить измерение внутреннего сопротивления (импеданс) аккумуляторов — основной показатель качества и состояния как отдельных элементов, так и батареи в сборе. Эта процедура обязательна для правильной компоновки и отбраковки ячеек при сборке эффективной батареи для электротранспорта. Подробнее о том, для чего важно знать внутреннее сопротивление аккумулятора, читайте в этой статье.

Особенности прибора YR1035+

  • Четырехпроводное измерение (метод Кельвина)
  • Измерение внутреннего сопротивления на частоте 1 кГц (метод а.с.)
  • Автоматический выбор диапазонов измерения напряжения и сопротивления
  • Компенсация сопротивления щупов нажатием одной кнопки
  • Питание от встроенного литиевого аккумулятора
  • Зарядка через разъём микро USB
  • Язык меню английский
  • Автоотключение
  • Подсветка

Диапазон измерений

  • напряжение 0,00001 … 100 В
  • сопротивление 0,01 мОм … 200 Ом

Погрешность по напряжению

  • 1 В +/ 0,00001 В — 0,15%
  • 10 В +/ 0,0001 В — 0,15%
  • 100 В +/ 0,001 В — 0,15%

Погрешность по сопротивлению

  • 20 мОм +/ 0,01 мОм (0,7%) (включена функция ZR)
  • 200 мОм +/ 0,1 мОм (0,5%
  • 2 Ом +/ 0,001 Ом (0,5%)
  • 20 Ом +/ 0,01 Ом (0,5%)
  • 200 Ом +/ 0,1 Ом (0,6%)

Почему для измерения внутреннего сопротивления стоит выбрать именно YR1035+

Прибор YR1035+ является обновленной версией YR1035. Несмотря на то, что оба прибора родом из Китая, они отлично откалиброваны и точность соответствует заявленной. В новой версии появился английский язык, что упрощает работу с меню. Добавилась функция запоминания параметров компенсации измерительной цепи и теперь нет необходимости проводить эту процедуру после каждого включения прибора. Изменился корпус, теперь разьём для подключения измерительных проводов находится снизу. Точность и пределы измерений остались прежними. Благодаря своей невысокой цене и высокой точности измерений получился очень конкурентоспособен.

Да, в популярных зарядных устройствах типа LIITOKALA LII-500, OPUS BT-C3100, есть функция измерения внутреннего сопротивления. Но если Вы ими уже пользовались, то 100% заметили, что измерение этого параметра в них реализовано исключительно для «красоты». При каждой установке аккумулятора в тот же самый слот, измеренное сопротивление каждый раз будет отличаться. При попытке измерения в разных слотах — тем более. Такое «измерение» выглядит скорее как гадание на кофейной гуще. Если я не прав, поправьте меня в комментариях.

Кроме измерения импеданса аккумуляторов, прибор с такой же точностью измеряет и сопротивление обычных проводников. Это может пригодиться при создании например, шунтов для амперметров или измерения сопротивлений резисторов.

Видео обзор YR1035+ и сравнение с предыдущей моделью YR1035, работа с меню приборов

Admiral134

Как провести компенсацию измерительной цепи прибора

Перед проведением измерений для исключения погрешности от сопротивления измерительных щупов и их проводов необходимо выполнить так называемую компенсацию. Делается это предельно быстро и просто, если соблюдать правильный алгоритм действий.

YR1035+ измерение внутреннего сопротивления аккумулятора

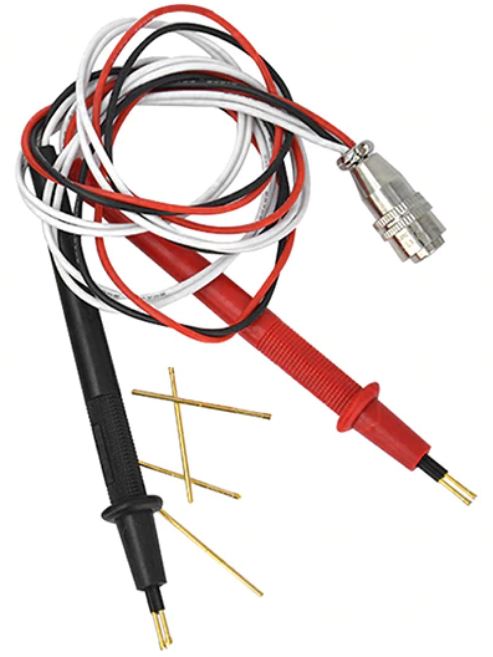

В случае с щупами типа Pogo Pins поступаем следующим образом:

  • необходимо совместить кончики обоих щупов согласно цветам проводов (белый на белый, красный на красный) во встречном направлении и нажать до упора, чтобы все четыре контакта оказались попарно подключены друг к другу
  • когда прибор покажет измеренное значение сопротивления, нажать на кнопку HOLD/ZEROR и удерживать до обнуления или минимальных показаний

Аналогичным образом поступаем и с другими типами измерительных цепей — холдером или клещами.

YR1035+ с быстрой доставкой

YR1035+ с обычной доставкой из Китая

При оформлении заказа используйте промокоды для получения скидки, они находятся в правом верхнем блоке.

Если у Вас есть вопросы или замечания по этой статье, обязательно пишите их в комментариях.
