Цифровой ваттметр FT08 RC а также амперметр, вольтметр, измеритель ёмкости

Высокоточный ваттметр - анализатор мощности FT08 RC 150A
Ваттметр FT08 RC

Достаточно точный многофункциональный цифровой ваттметр для цепей постоянного тока FT08 RC .

Умеет измерять ёмкость аккумуляторов, текущий ток/максимальный ток за время измерения. Напряжение текущее/минимальное за время измерений. Мощность текущую в Вт/потребленную мощность за время измерений в Вт/ч.

Доставка из Китая цена на момент публикации 760 р.

Доставка из Китая цена на момент публикации 690 р.

Основные характеристики

  • постоянное напряжение до 60 В
  • постоянный ток продолжительно 50 А, кратковременно до 150 А
  • текущая/максимальная мощность кратковременно до 3000 Вт
  • счетчик Ватт/ч до 6554 Вт/ч
  • счетчик ёмкости аккумулятора до 65 А/ч
  • размеры 83x42x24 мм

Цифровой ваттметр FT08 RC

В верхней строке экрана отображается текущие ток и напряжение. Нижняя строка справа — текущая мощность. В нижней строке слева циклически отображаются:

  • минимальное напряжение в цепи за время измерений
  • максимальная мощность за время измерений
  • максимальный ток за время измерений
  • ёмкость в мА/ч за время измерений
  • потребленная мощность в Вт/ч за время измерений

Источник тока подключается со стороны SOURCE, нагрузка со стороны LOAD.

Дисплей на фото может показаться узко-обзорным, но в действительности показания прекрасно видно с любого угла.

Провода в силиконовой негорючей изоляции.

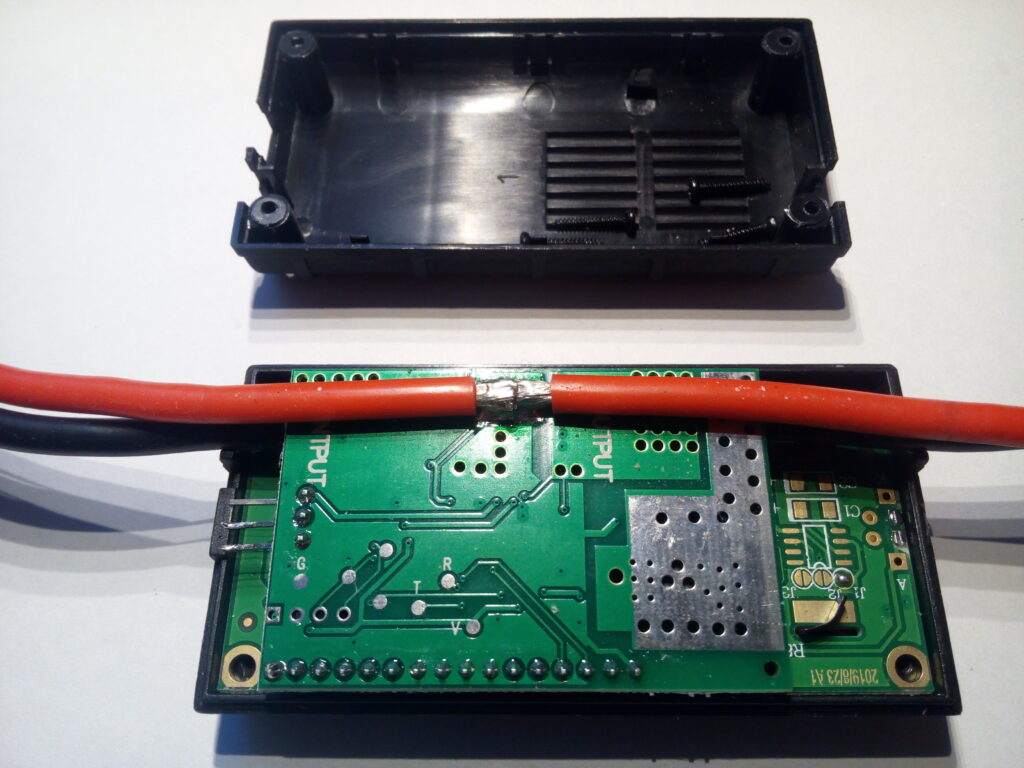

Ваттметр может питаться от измеряемой линии, если напряжение в ней более 4,7 В. Энергонезависимой памяти у него нет и при отключении измеряемой цепи он не сохраняет измеренные значения и все показания сбрасываются. Чтобы они сохранялись, должно быть подключено внешнее питание с напряжением от 4,7 до 60 В. В корпусе есть отверстие внутри которого расположен трёх-штырьковый разъём:

цифровой ваттметр FT08 RC

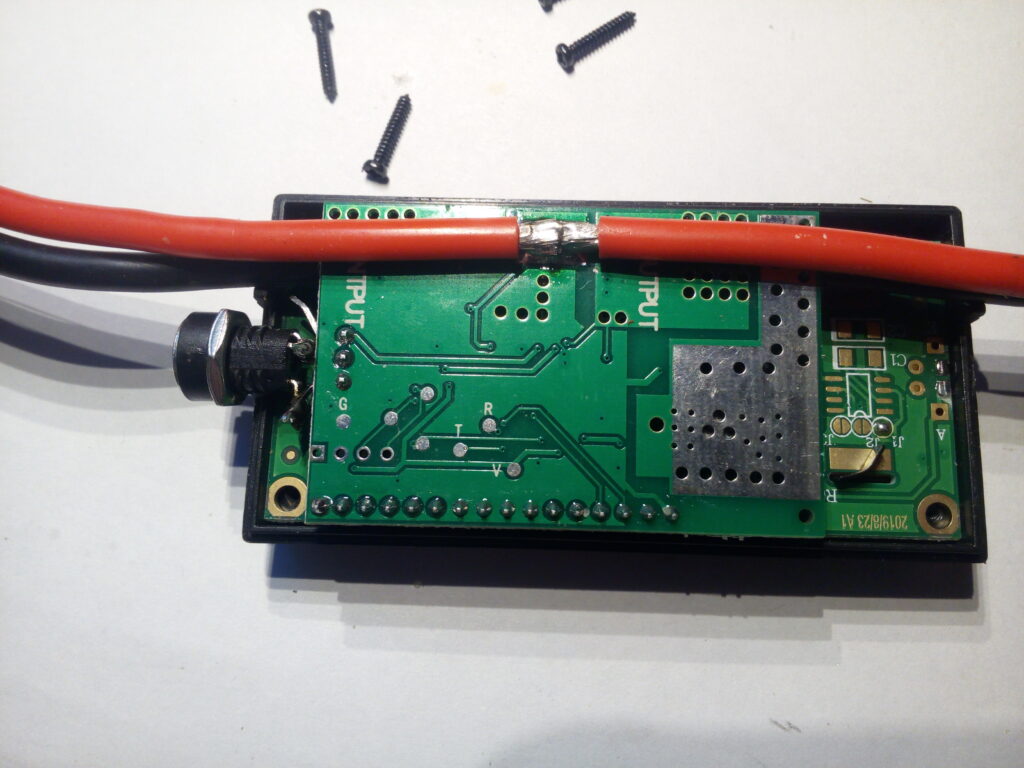

Нижний контакт с пометкой G — минус, средний контакт плюсовой. Для удобства использования я установил свой разъём.

FT08 RC внешнее питание

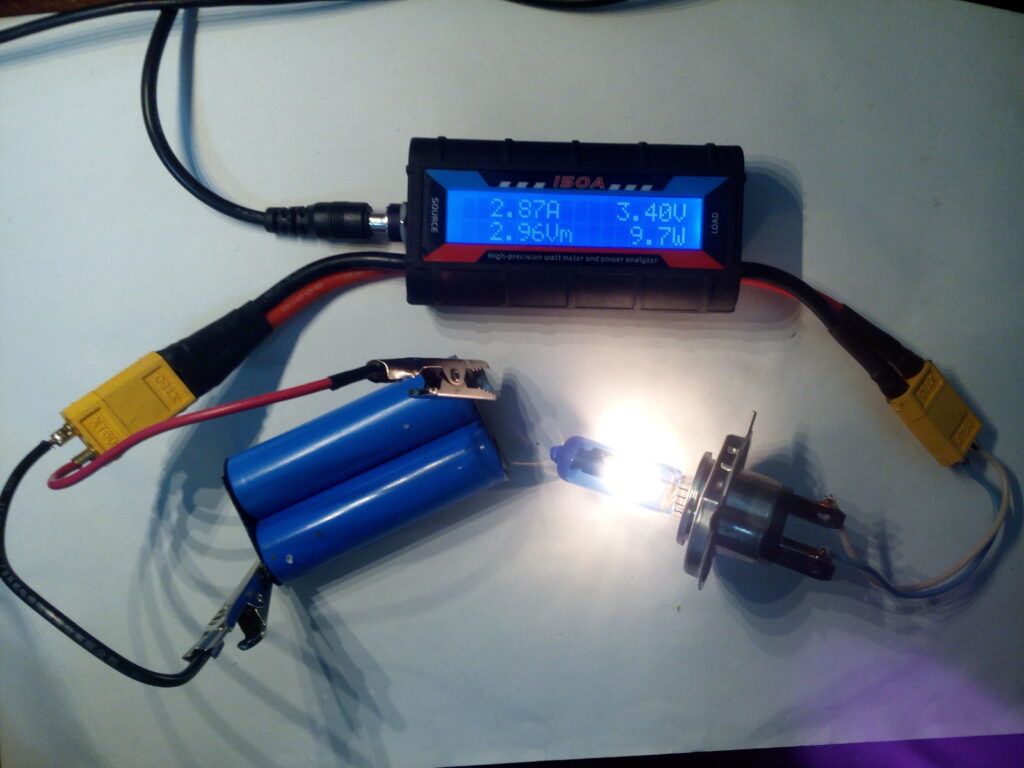

Так выглядит примитивный «измерительный стенд» для замера ёмкости аккумуляторов. Хорош он в первую очередь тем, что не имея дорогостоящего специального зарядно — разрядного устройства, можно замерять ёмкость аккумуляторов при разряде током до 50 А. Причем точность будет до 1 мА/ч. Подключая на выход нагрузку разной мощности регулируется разрядный ток. В конце разряда главное не пропустить момент при котором аккумулятор нужно отключить во избежание глубокого разряа. При этом контролировать оставшееся напряжение правильнее непосредственно на контактах аккумулятора другим вольтметром, т.к из-за падения напряжения на подводящих проводах показания на приборе будут занижены. Либо подключать максимально короткими толстыми проводами.

FT08 RC измерение ёмкости аккумулятора
