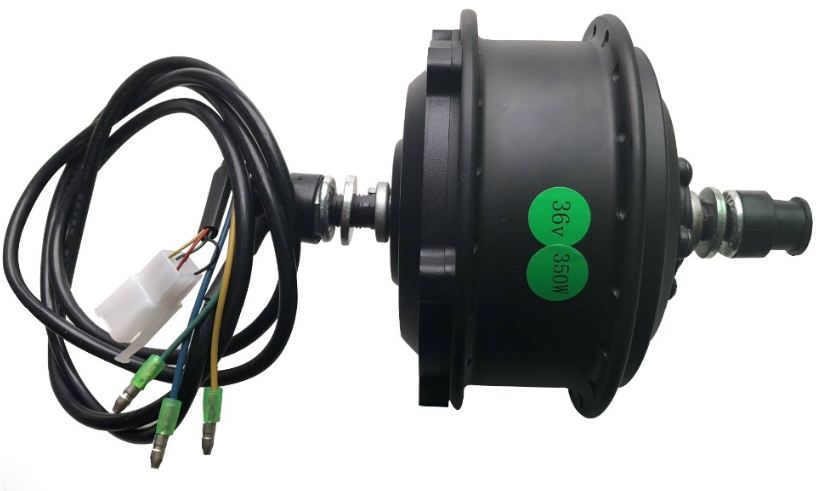

Двигатель редукторный 250 Вт/36 В для установки в моторколесо

Двигатель редукторный с номинальной мощностью 250 Вт/36 В для установки в переднее/заднее моторколесо электровелосипеда с доставкой из Китая. Стоимость на момент публикации 6110р.

Характеристики

  • Тип: безщеточный мотор-редуктор постоянного тока (BLDC)
  • Номинальное напряжение 36 В
  • Номинальная мощность 250 Вт
  • Размеры совместимых ободов (дюймы): 16”18”20”22”24”26”27. 5”700c 28 “29”
  • Скорость вращения 320 об/мин
  • Номинальная скорость 25-32 км/ч
  • Номинальная эффективность не менее 80%
  • O.L.D (ширина вилки необходимая для установки) 100 мм передний /135-142 мм задний
  • Рекомендуемые спицы 12 G/13 G
  • Интегрированные датчики Холла
  • Интегрированный датчик скорости
  • Тип тормоза V/дисковый тормоз
  • Шум <55 дБ
  • Класс пыле-влагозащиты IP54
  • Расположение кабеля справа
  • Масса 2,6 кг передний / 2,8 кг задний

Чертежи на редукторный двигатель в моторколесо номинальной мощностью 250 Вт

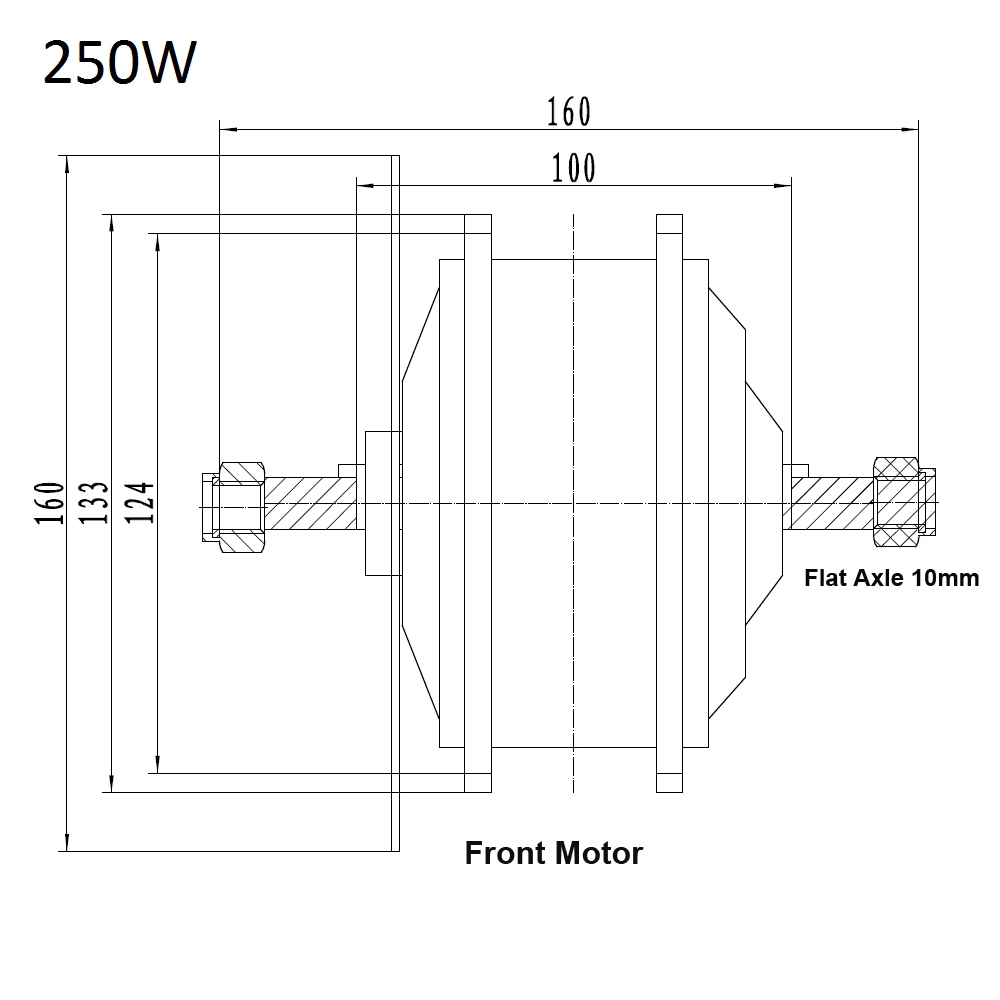

Двигатель редукторный 250 моторколесо переднее
Схема с размерами переднего мотора

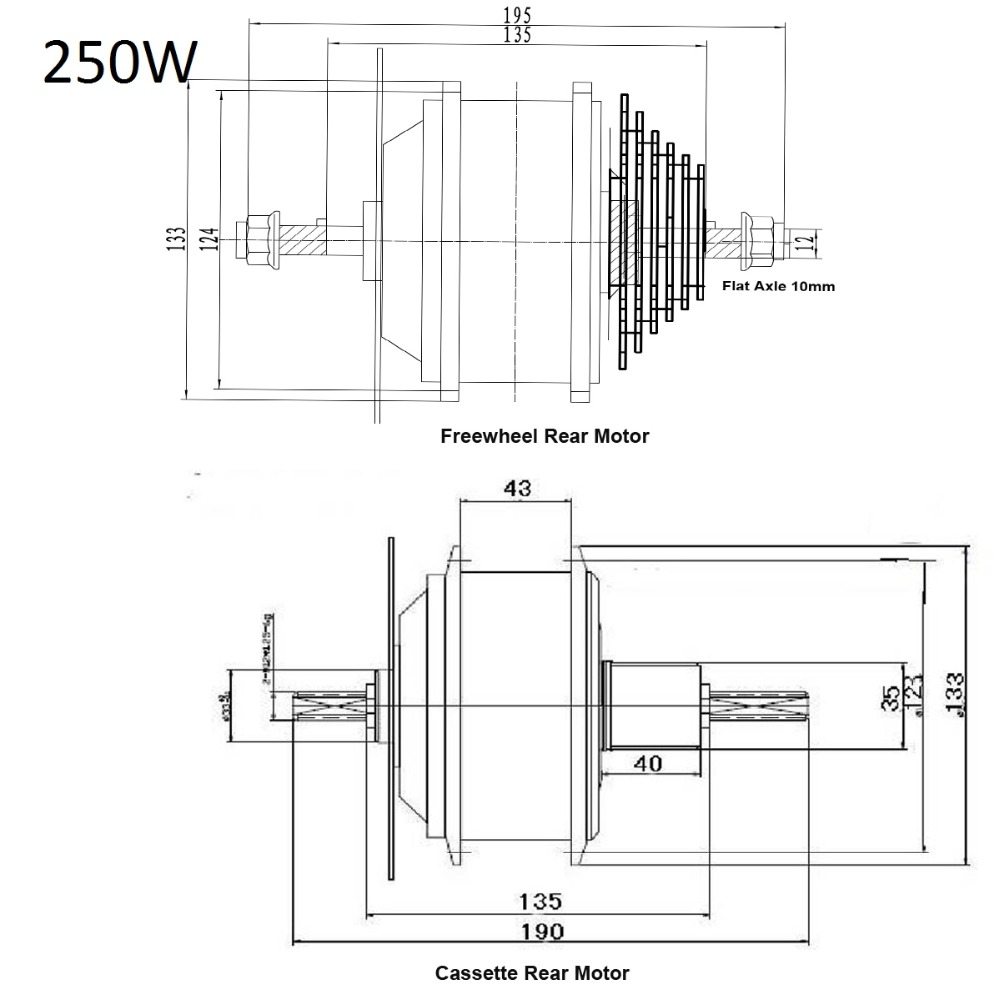

Двигатель редукторный 250 моторколесо заднее
Схема с размерами заднего мотора под трещётку/кассету

Размеры для расчёта длинны спиц

Для расчета длины спиц учитываются расстояние между фланцами – 43 мм и диаметр по которому расположены отверстия для спиц на левом и правом фланцах (диаметр концентратора) – 124 мм. Количество спиц – 36шт. Калькулятор для расчёта спиц. Рекомендуется схема спицевания в 3-4 креста.

Датчик скорости

Датчик скорости представляет из себя пару из неподвижного датчика Холла и магнита, установленного на боковой крышке мотора. За один оборот двигателя датчик срабатывает один раз, в момент срабатывания на выходе появляется сигнал +5 В относительно черного провода.
