NCR26650 Lii-51S

NCR26650 Lii-51S литий ионный аккумулятор от LiitoKala.

Доставка из Китая лоты на 1/2/3/4/5/6/10 шт. стоимость на момент публикации 270 руб.


  • Номинальная емкость 5100 мА/ч
  • Номинальное напряжение 3,7 В
  • Максимальное напряжение 4,25 В
  • Минимальное напряжение 2,7 В
  • Номинальное внутреннее сопротивление 18 мОм
  • Количество циклов заряд/разряд – 1000 до DOD 80%
  • Номинальный ток РАЗРЯДки 3 А
  • Максимальный продолжительный ток РАЗРЯДки 20 А
  • Номинальный ток ЗАРЯДки 1 -2 А
  • Максимальный ток ЗАРЯДки 5,1 А
  • Масса 94 г
  • Температура ЗАРЯДки 0 ~ 45 °C
  • Температура РАЗРЯДки -20 ~ 60 °С

Видео обзоры NCR26650 Lii-51S

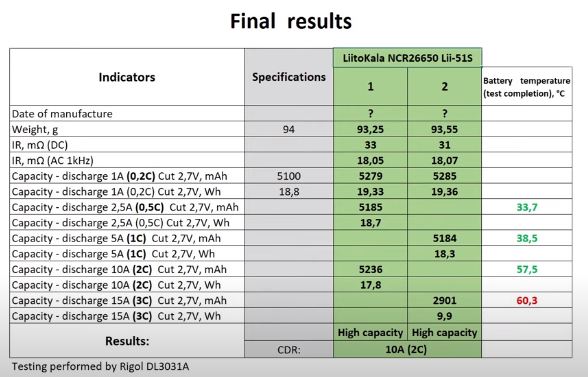

Результаты тестов при разряде

  • 2,5 А – 5200 мА/ч
  • 5А – 5200 мА/ч, нагрев до 38 °С
  • 10А – 5260 мА, нагрев до 57 °С
  • 15А – нагрев до 60 °С, за 11 мин, успел отдать 2900 мА/ч
NCR26650 Lii-51S тесты

Ёмкость аккумулятора NCR26650 Lii-51S соответствует заявленной, но он является среднетоковым, с максимальным током разряда ~10 А.
